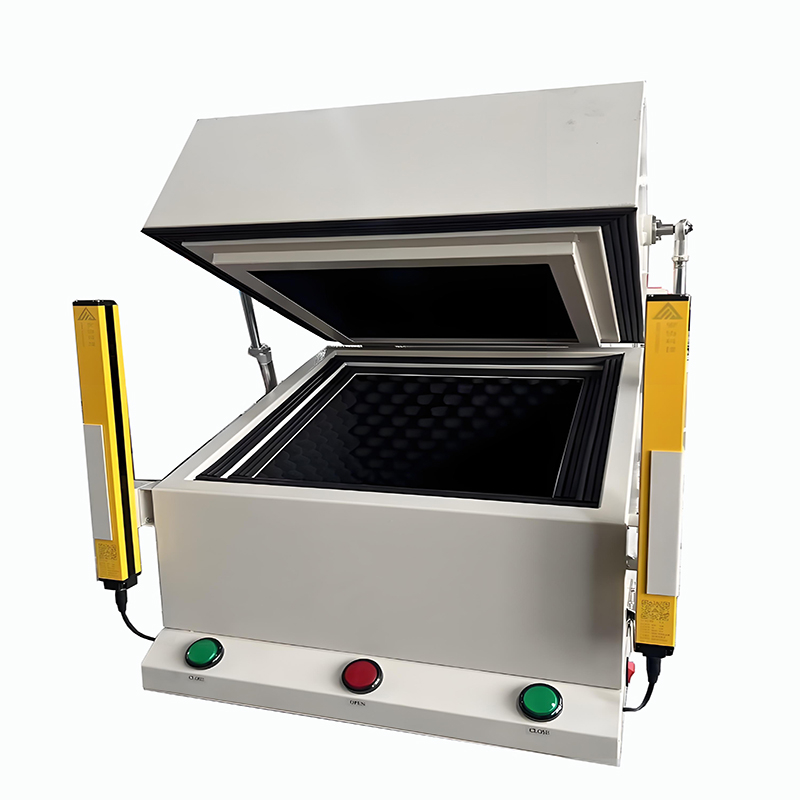

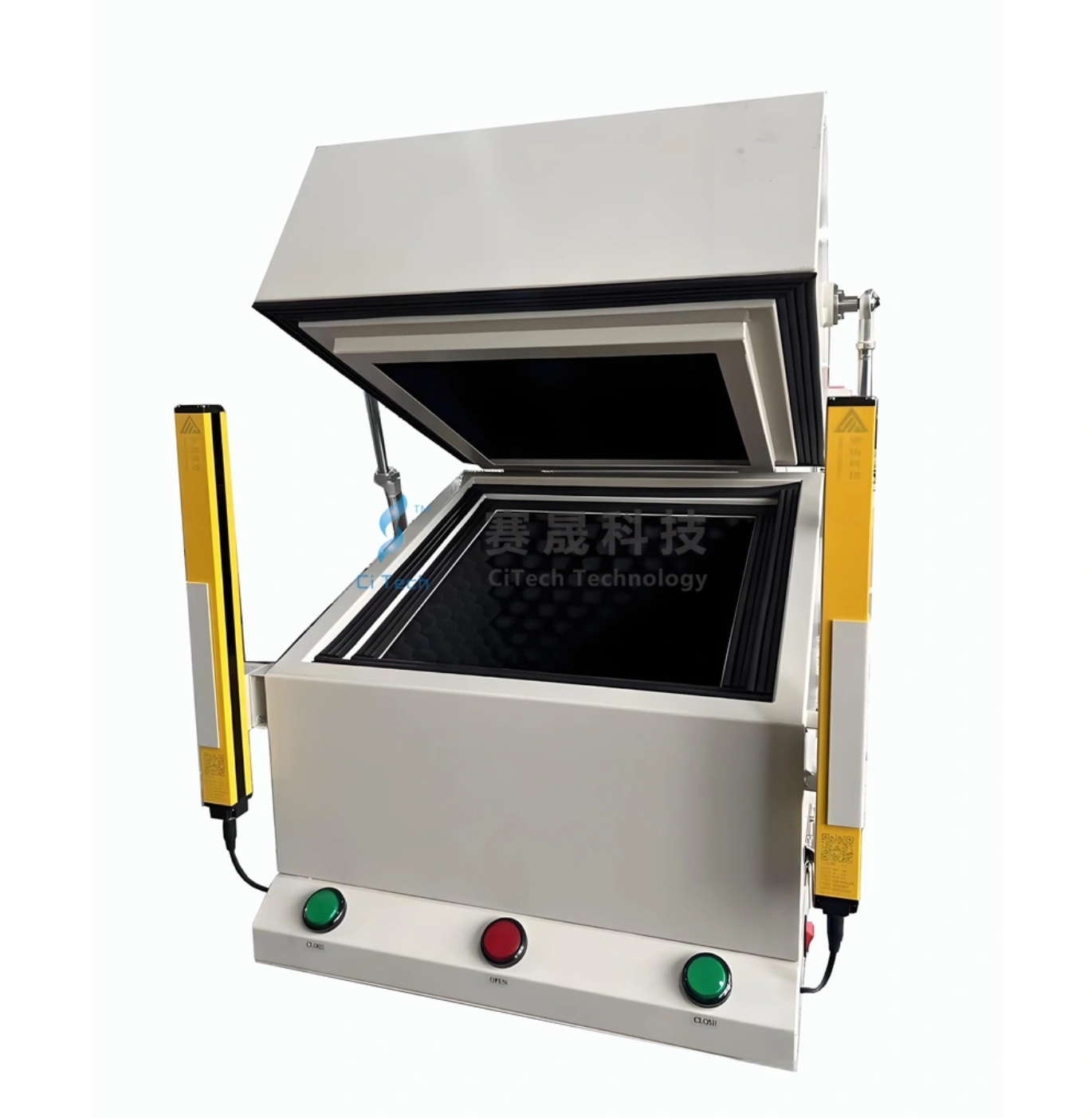

Pneumatic sound box

ST-SG5060B soundproofing box/ acoustic chamber

isolation：100-300hz>25dB,300-700hz>35dB,700-20khz>40dB

introduction：

szcitech can specially provide a steady testing environment with noise floor low as 30dBA for performance testing of acoustic products, such as speaker, receiver and mic. Sound isolation can reach more than 40dB(300Hz~20kHz), Also, we can customize sound-isolated box with special size and fixture, and provide integrated testing system solutions.

Application

The main function and scope of application

Providing a sound insulation testing environment for products

Operation Mode	Pneumatic
outer dimension	(D)660(W)610(H)610mm
inner dimension	(D)380(W)370(H)335mm
Material	metal plate
Surface Color	Grey white
Soundproof solution	100-300hz>25dB,300-500hz>35dB,500-20khz>40dB
I/O(connector)	AC2201 ,BNC2, USB2.0*4
