Manual sound box

25dBA acoustic chamber/soundproof box/sound box

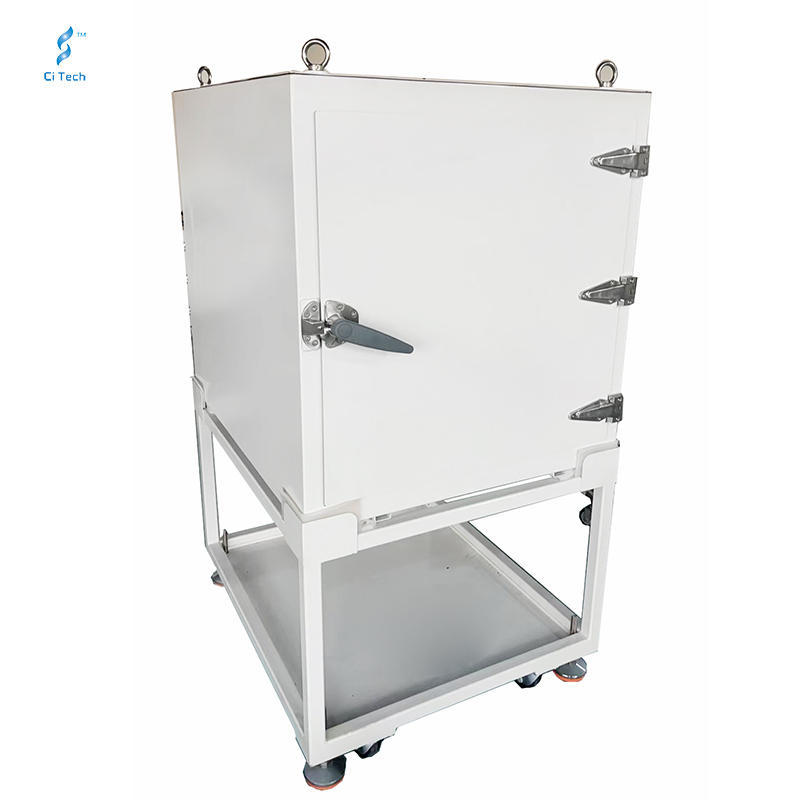

ST-SG2230 25dBA acoustic chamber/soundproof box/sound box

Soundproof Volume Outer environment noise pressure level:80dB(A)inside noise :Lower than 25dba, measured 22dba

Introduction：

szcitech can specially provide a steady testing environment with noise floor low as 25dBA for performance testing of acoustic products, such as speaker, receiver and mic. Sound isolation can reach more than 40dB(300Hz~20kHz), Also, we can customize sound-isolated box with special size and fixture, and provide integrated testing system solutions.

Application

The main function and scope of application

Providing a sound insulation testing environment for products

Internal testing can be observed through the camera

Operation Mode	Manual operation
Inner dimension	(D)300(W)150(H)200mm
Outer dimension	(D)1000(W)850(H)1583mm
Material weight	2mm metal plate 426kg
Surface Color	white
Soundproof solution	outside 80dBA， background noise ：Lower than 25dba, measured 22dba
I/O(connector)	Reserve a cable hole(50MM)（According to the customer request ）
