outer noise 80dBA, inside noise≤ 30dBA
CiTech can specially provide a steady testing environment with noise floor low as 30dBA for performance testing of acoustic products, such as speaker, receiver and mic. Sound isolation can reach more than 40dB(300Hz~20kHz), Also, we can customize sound-isolated box with special size and fixture, and provide integrated testing system solutions.

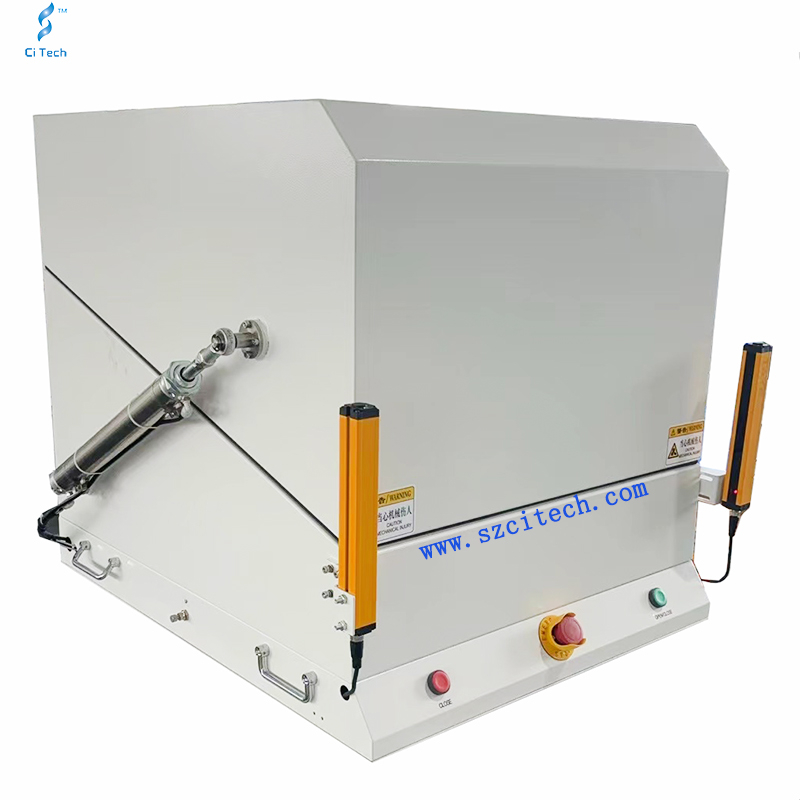

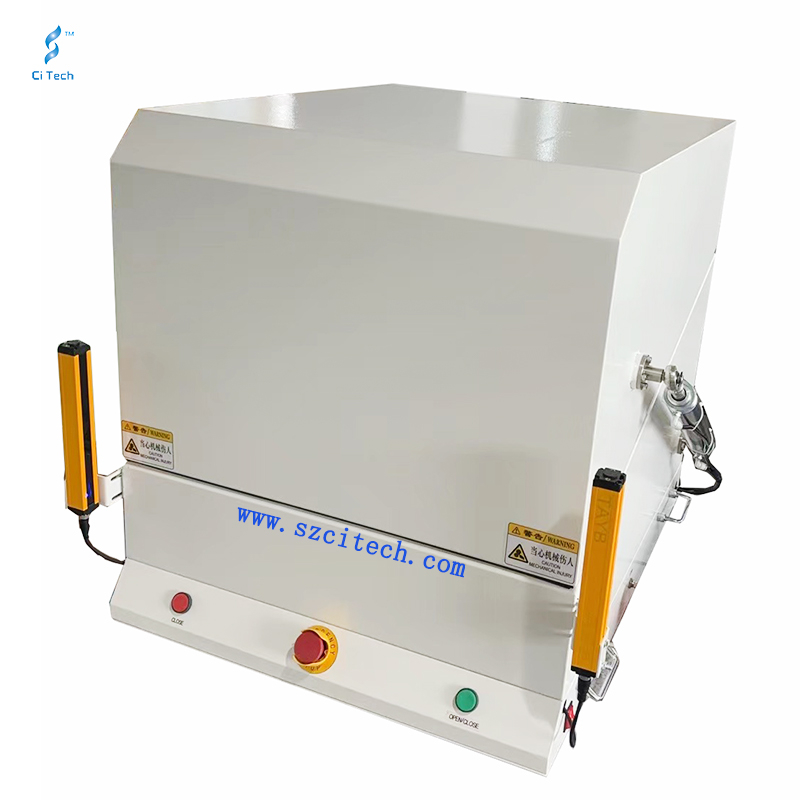

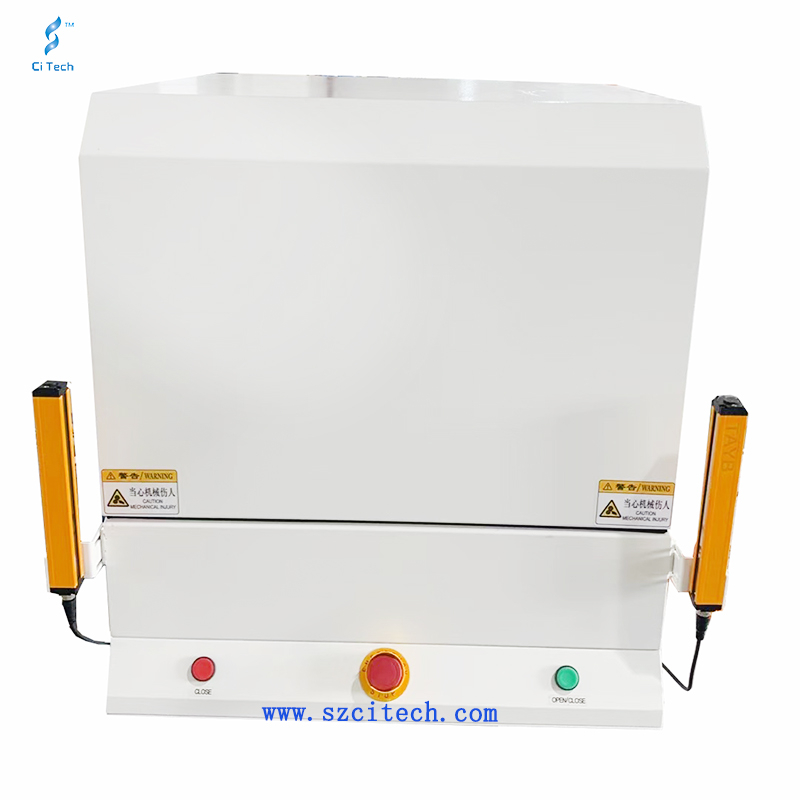

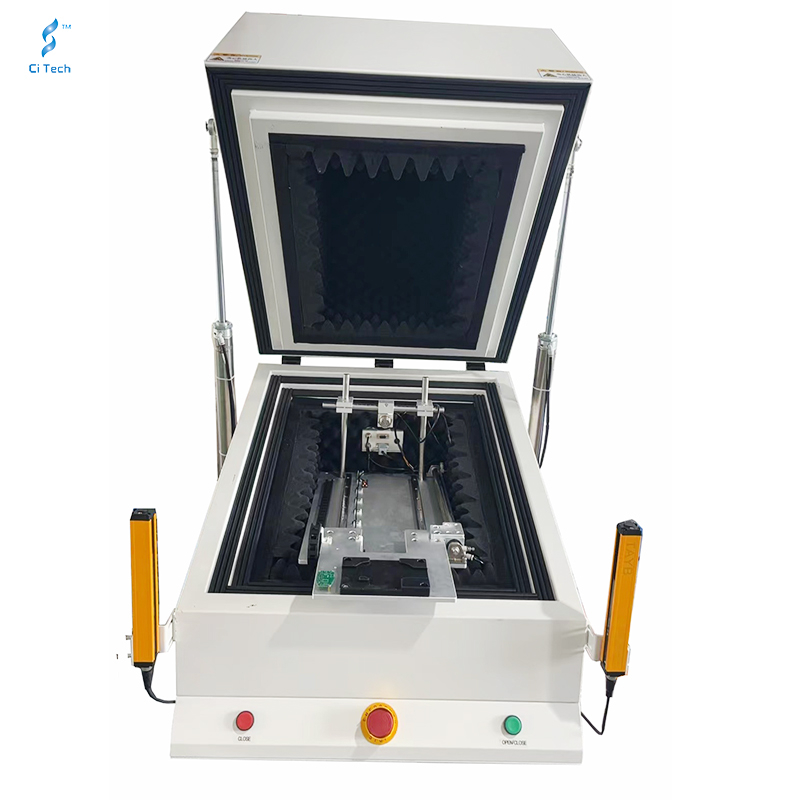

ST-SG001C soundproof box/ acoustic chamber/sound box
Application
The main function and scope of application
Providing a sound insulation testing environment for products
Operation Mode | Pneumatic |
Inner dimension： outer dimension： | (D)430*(W)310*(H)280MM （D)818*(W)660*(H)713mm |
Material | metal plate |
Surface Color I/O: | Grey white DB9*1,DC*1 |

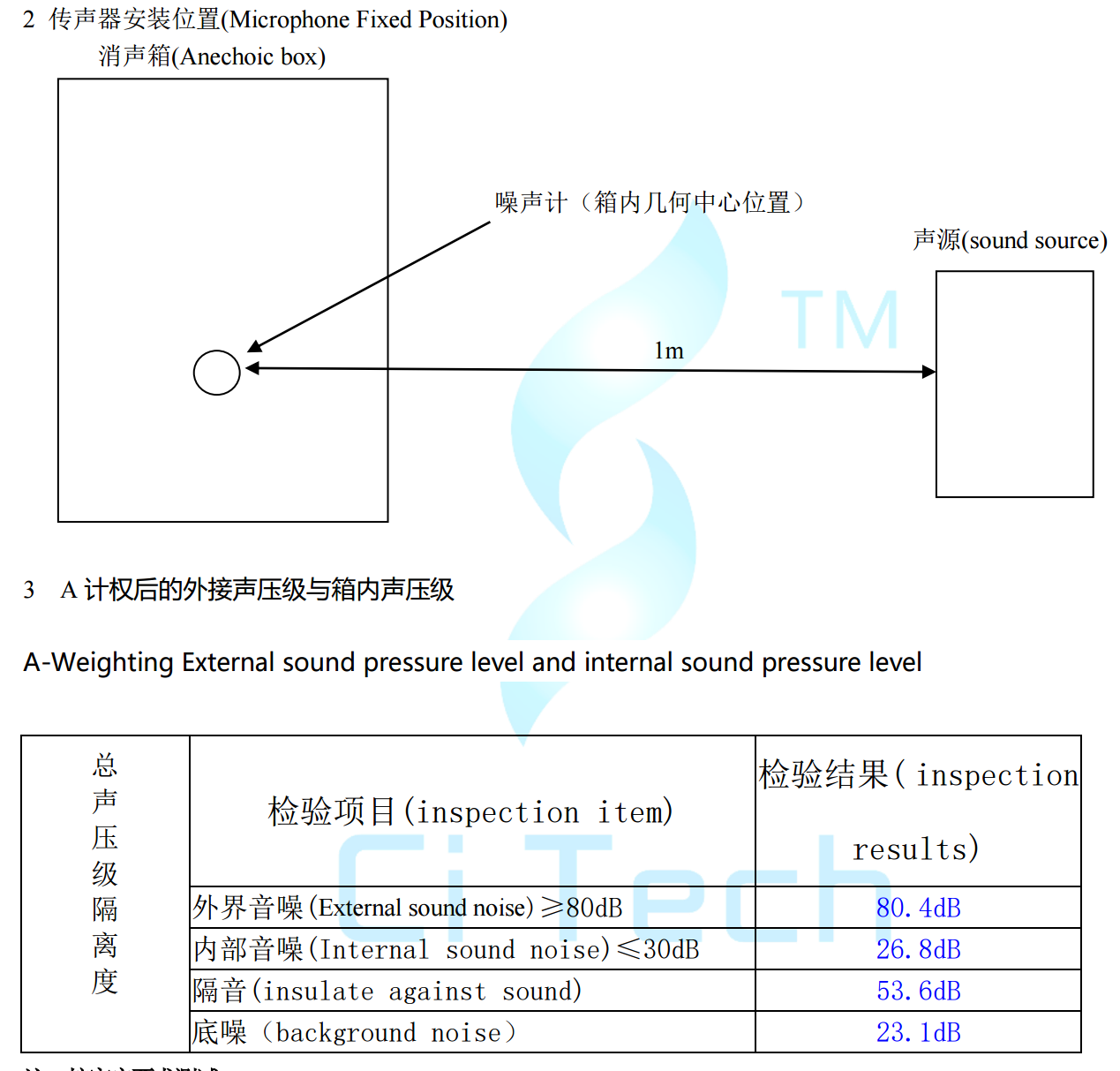

Soundproof solution | 1、 Soundproof Volume Outer environment noise pressure level: A weighted sound pressure level:outer noise 80dBA, inside noise≤ 30dBA |
We can customize acoustic chamber with different isolation degrees according to different requirements, and the background noise is as low as 20-30db
