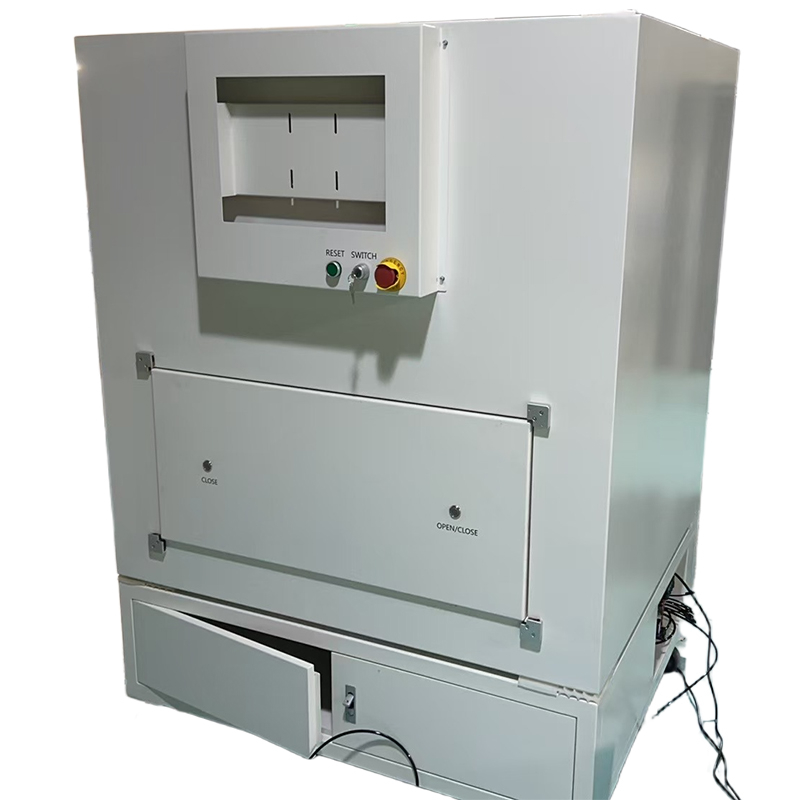

Pneumatic sound box

ST-SG1117B soundproofing box/ acoustic chamber/sound box

ST-SG1117B soundproofing box/ acoustic chamber/anechoic box

Soundproof solution: Outer environment noise 80dB（A); inside noise :better than 40dB(A)

It can meet the requirements of most 3C digital products, automotive electronics and other audio test environment

order

audio isolation boxes for noise testing（soundproof box、 acoustic chamber、anechoic box）

introduction：

szcitech can specially provide a steady testing environment with noise floor low as 30dBA for performance testing of acoustic products, such as speaker, receiver and mic. Sound isolation can reach more than 40dB(300Hz~20kHz), Also, we can customize sound-isolated box with special size and fixture, and provide integrated testing system solutions.

Application

The main function and scope of application

Providing a sound insulation testing environment for products

Operation Mode	Pneumatic

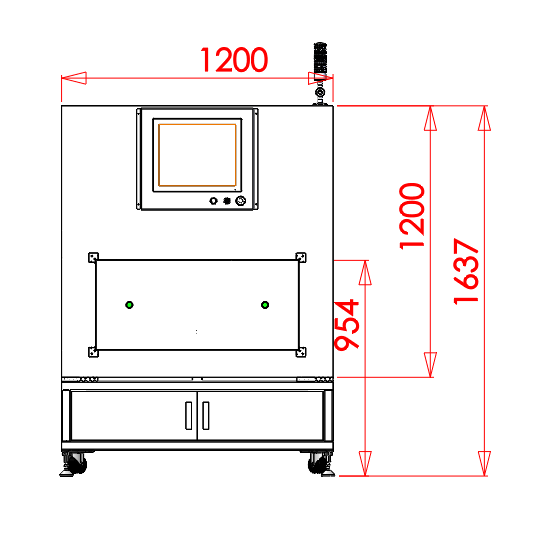

Inner dimension outer dimension	(L)1020(W)920(H)1020mm (L)1200(W)1100(H)1640mm
Material	metal plate
Surface Color	Grey white

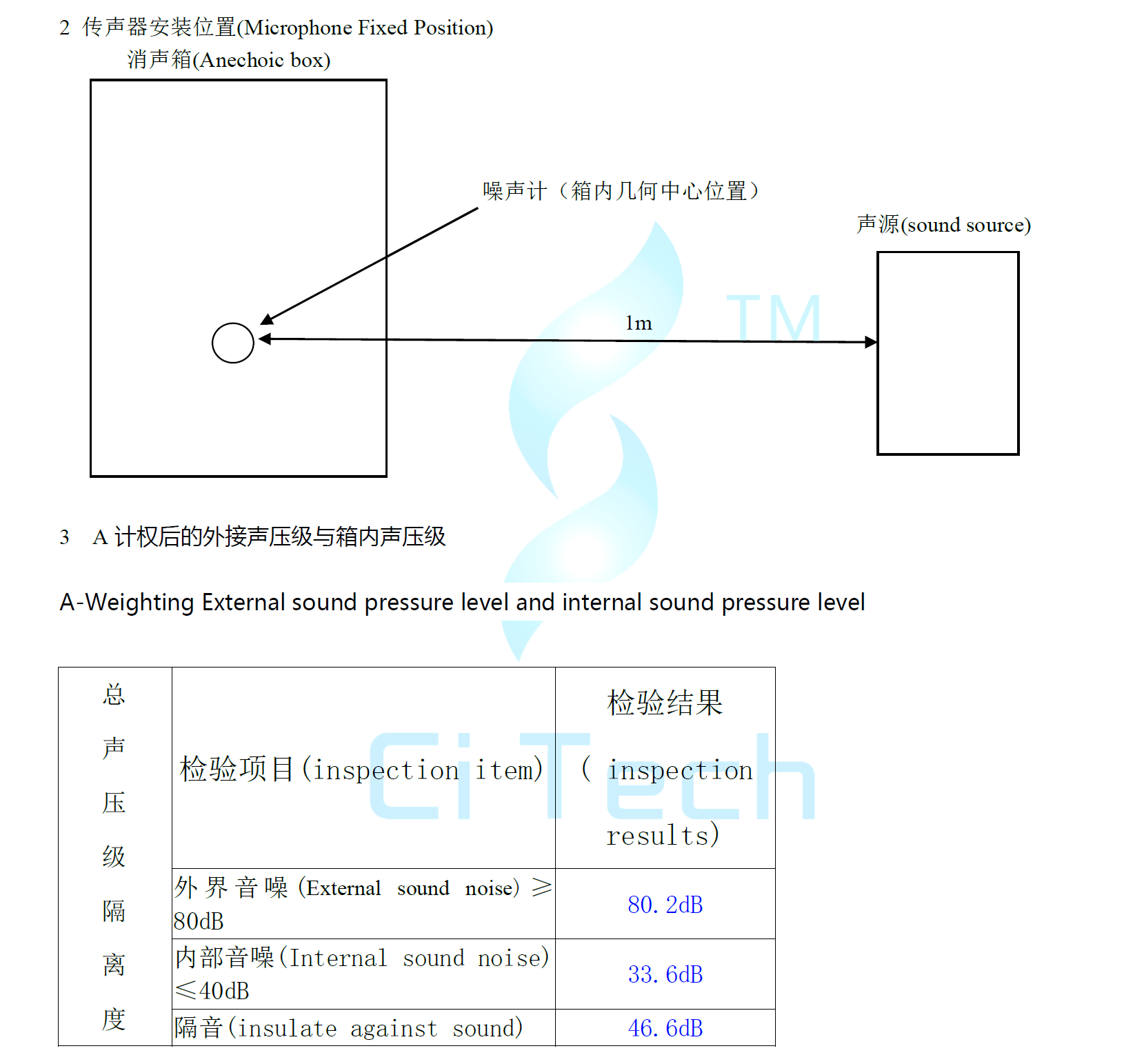

Soundproof solution	Outer environment white noise 80dB（A); inside noise :better than 40dB(A)
acoustic box I/O(connector)	4 BNC,2 DB25 ，Reserve a cable hole（According to customer request ）
