ST‑S6821 Stackable RF Shielded Enclosure
Five independent detachable RF test chambers
Providing superior RF isolation and standardized signal feed‑through interfaces, ST‑S6821 is ideal for R&D verification and production‑line testing of wireless devices.
Supported wireless standards: DAB/DMB, GSM, GPS, LTE, Wi‑Fi, Wi‑MAX, CDMA series, 3G/4G/5G cellular, WLAN, Bluetooth, UWB, Zigbee, RFID and more.
0.8‑6 GHz shielding effectiveness: typical 85‑95 dB
Each chamber can work standalone or stacked as a 5‑unit assembly
Expandable SMA / RJ45 / USB / HDMI & filtered power interfaces
Custom mechanical layout, absorber lining and ventilation on request
Features
Reliable high RF shielding up to 12GHz
Manual door operation is convenient and efficient.
Easily customize to meet various test needs
Easy to maintain design, with safety protection
Multi-layer superposition and integration
Ensure reliable repeat test, good consistency
Easy to move
Specification
Inner Dimension | (L)680*(W)*680*(H)210MM |

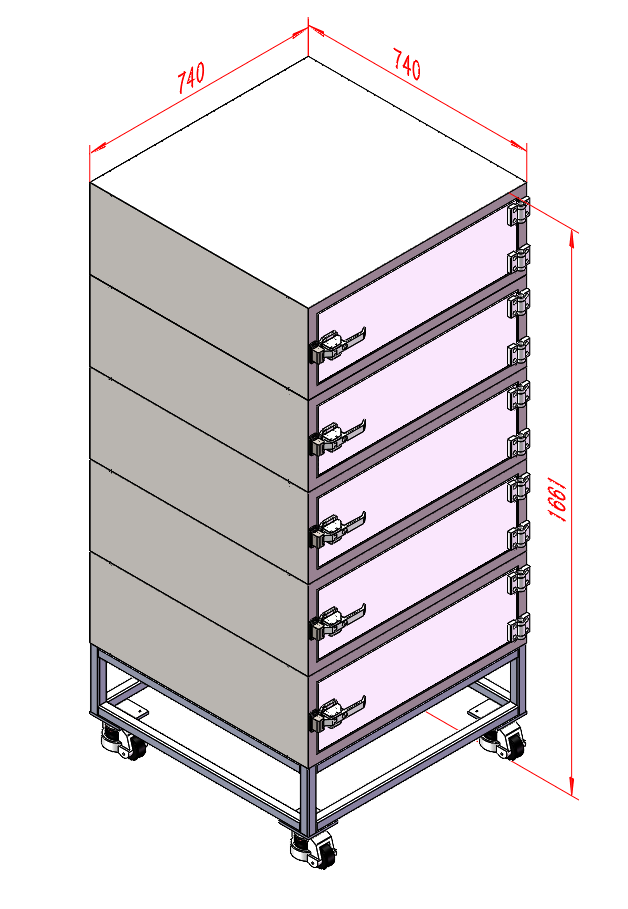

Outer Dimension | (L) 740x (W) 740x (H) 1661mm（5-layer shielded box） |
Shielding Isolation | 800MHz~6GHz>80dB |
Shielding Material | Microwave Absorber |
Material | metal plate |
Surface Color | White or black (According to the customer request custom color) |
I/O Connectors | 8 SMA connectors，1 AC filter（each layer） |
