Automatic shielding box

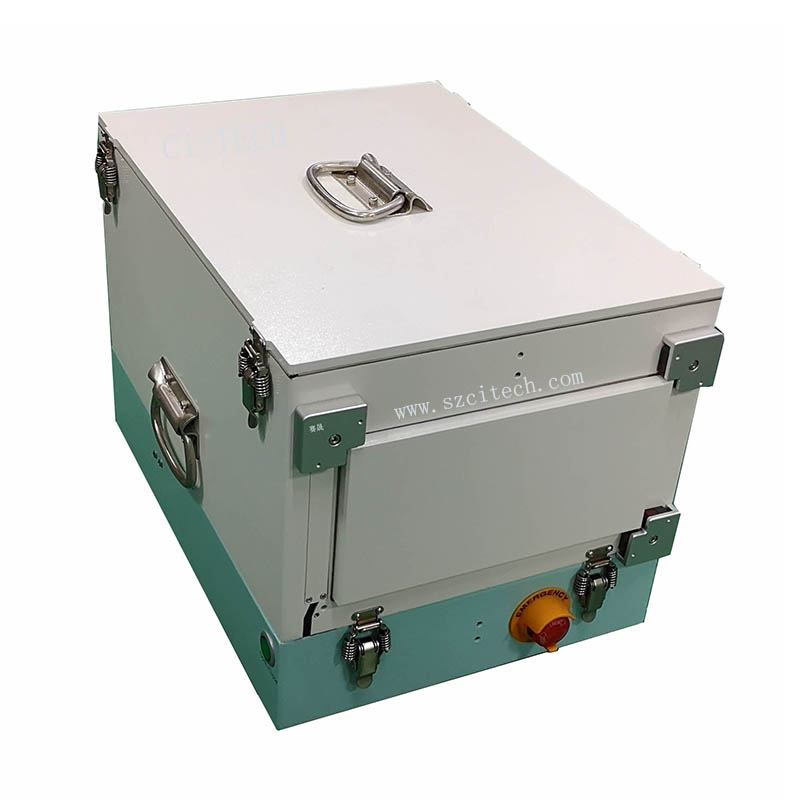

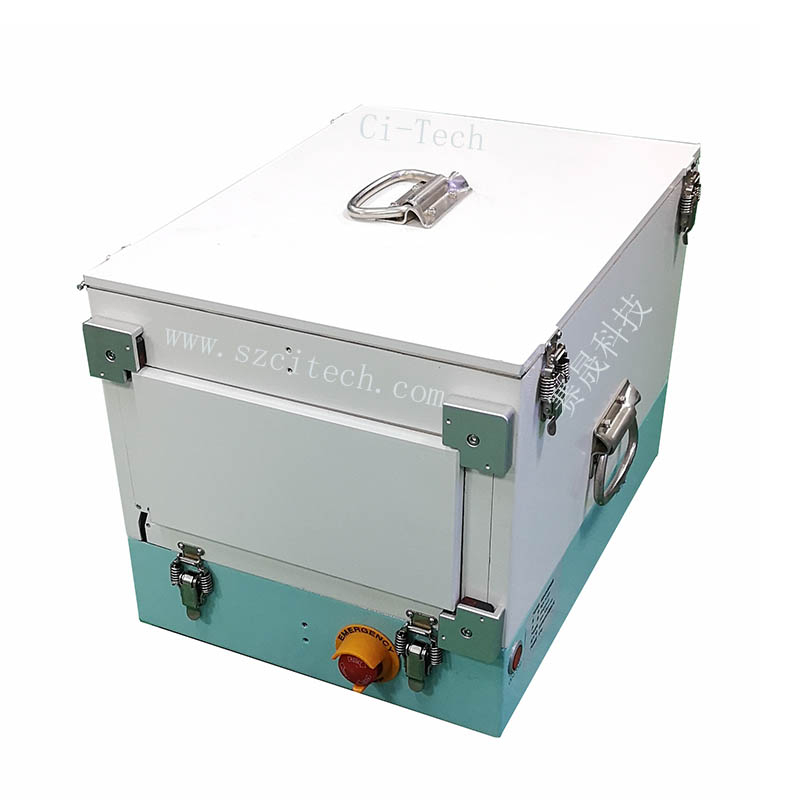

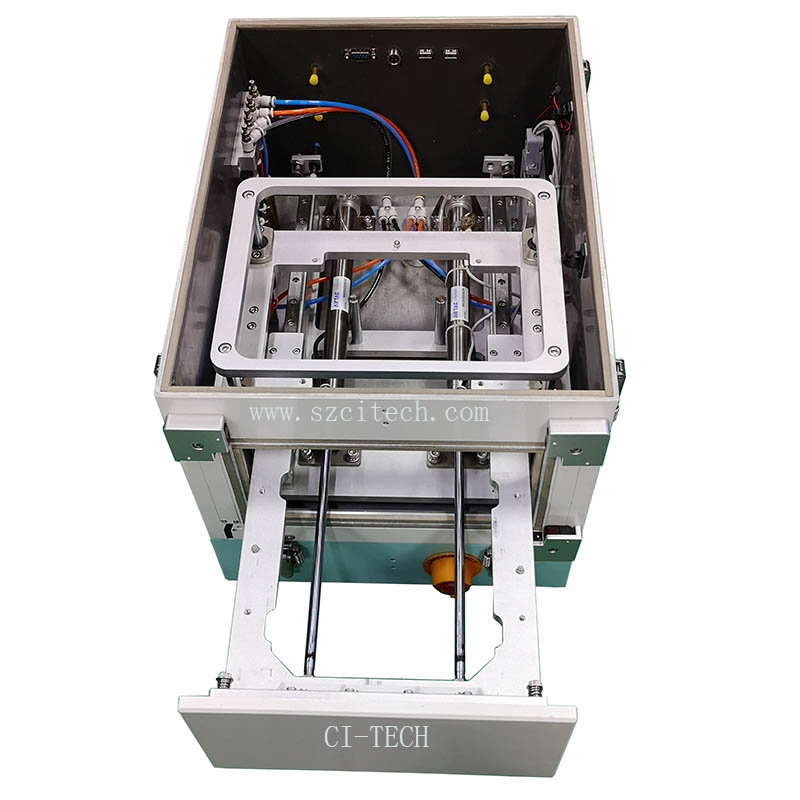

ST-SA007 RF SHIELD BOX

ST-SA007 RF Shielding Box provides RF isolation and signal connections necessary for mobile testing. With the RF coupling accessory and filtered control ports, it makes an ideal solution for testing mobiles and small RF devices on the test benches of R&D, service QC and manufacturing

Comprehensive wireless communications testing solutions, in the service of high-end technology, such as DAB/DMB, GSM, GPS, LTE, WIFI, WI-MAX, CDMA, CDMA2000, WCDMA, TD-SCDMA, 3G/4G mobile, WLAN, Bluetooth, PDA,Reflex, WIFI phone, UWB, Zigbee, RFID, TD-SCDMA, etc.


order



Features

u  Reliable high RF shielding up to 12GHz

u  Pneumatic control/Automatic

u  Easily customize to meet various test needs

u  Shock absorbance on lid

u  Easy to maintain design, with safety protection

u  SMT motherboard test power value is stable,

ensure reliable repeat test, good consistency



Specification

Inner Dimension

(L)400*(W)*300*(H)200MM

Outer Dimension

(L)425*(W)315*(H)305 MM

Shielding Isolation

800MHz~8.5GHz>70dB

Shielding Material

Microwave Absorber

Material

Aluminum+ metal plate

Weight

approx.35kg

Surface Color

white   +blue( According to the customer request custom color)

I/O Connectors

SMA*4,RS232*1,   USB*2According to the customer   request
