Automatic shielding box

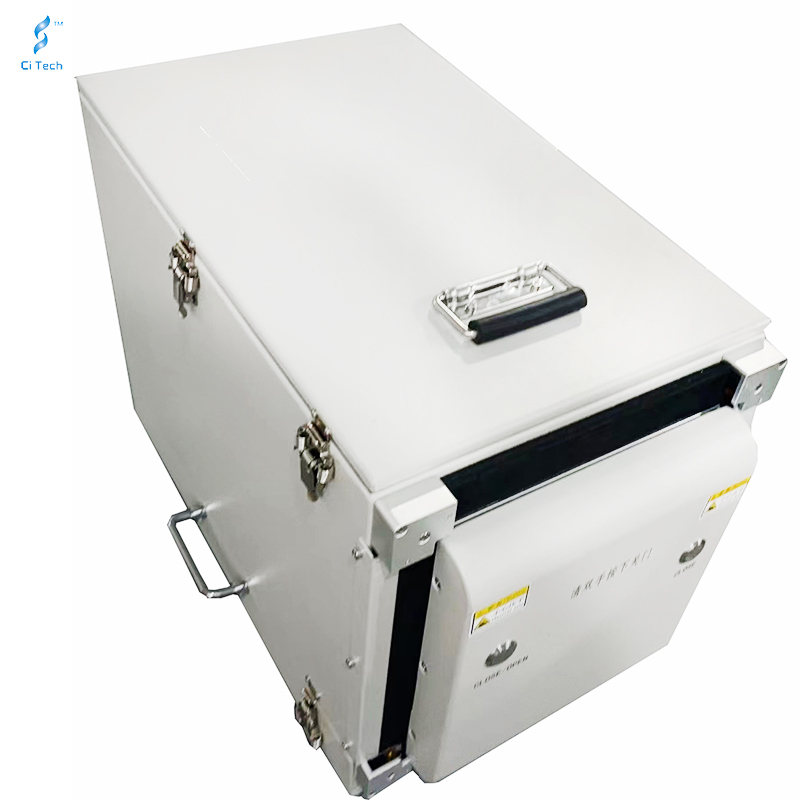

ST-SA3054 PCBA test RF SHIELD BOX

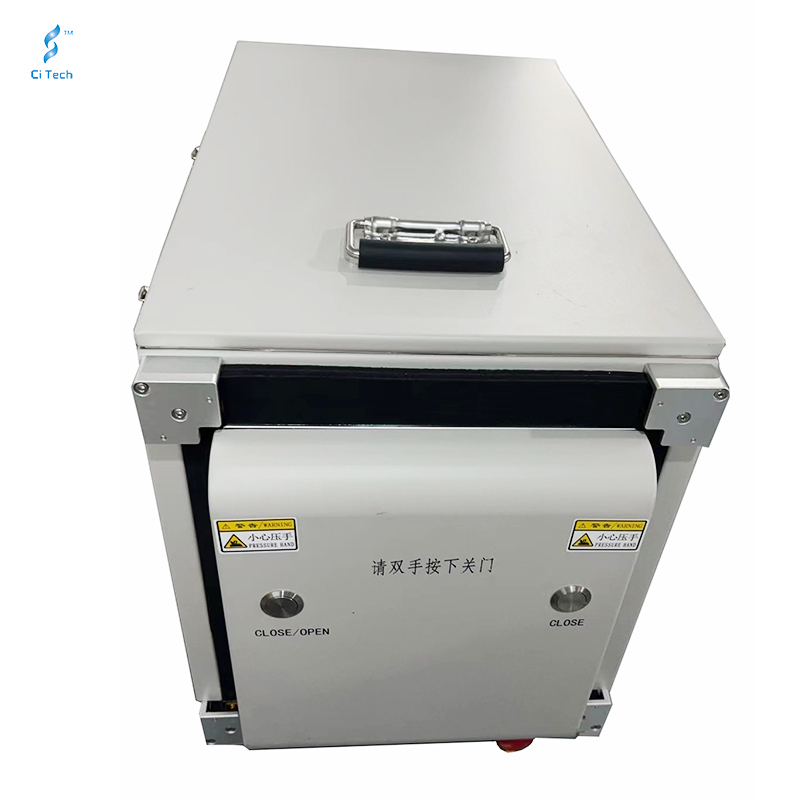

ST-SA3054 providing shielding capabilities up to 12 GHz. The size of the ST-SA3054 is a popular choice for performing RF testing on small wireless and mobile devices. In addition to shielding traditional 2.5 GHz technologies like WIFI, Zigbee, and Bluetooth, this shield box supports a range of up to 12 GHz to enable testing on forward-looking technologies such as 5G, UWB, and WIFI 6E variants. The box can be operated remotely via remote control, while additional features like the dual pressure control lid and sensor ensure enhanced user safety.

order

Features

u Reliable high RF shielding up to 12GHz

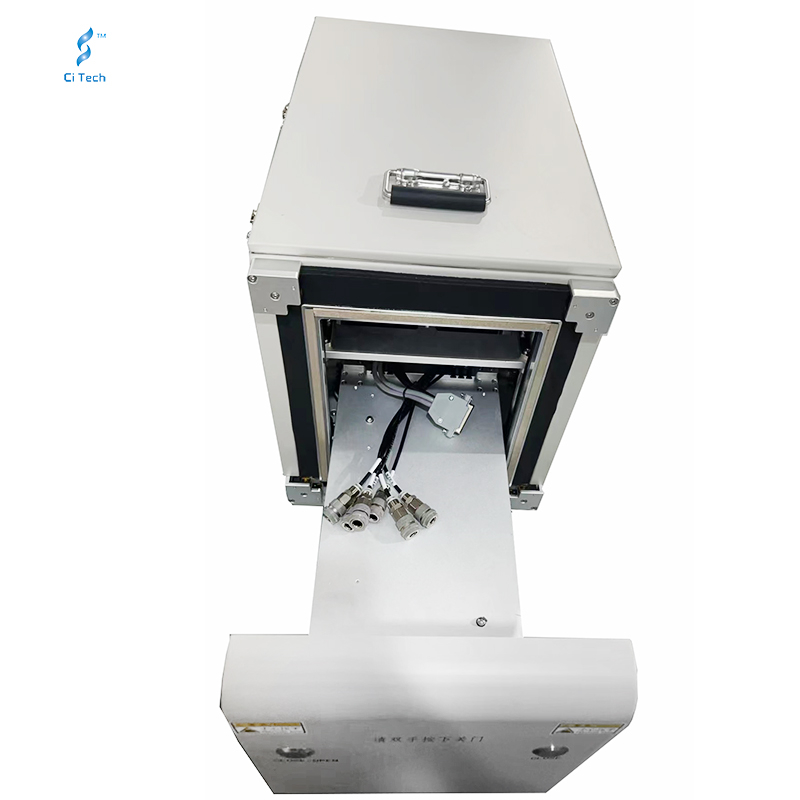

u Pneumatic control/Automatic

u Easily customize to meet various test needs

u Shock absorbance on lid

u Easy to maintain design, with safety protection

u SMT motherboard test power value is stable,

ensure reliable repeat test, good consistency

Specification

Outer Dimension	(W)300(W)510(H)415 MM
Shielding Isolation	800MHz~6GHz>70dB
Shielding Material	Microwave Absorber
Material	metal plate
Surface Color	white ( According to the customer request custom color)

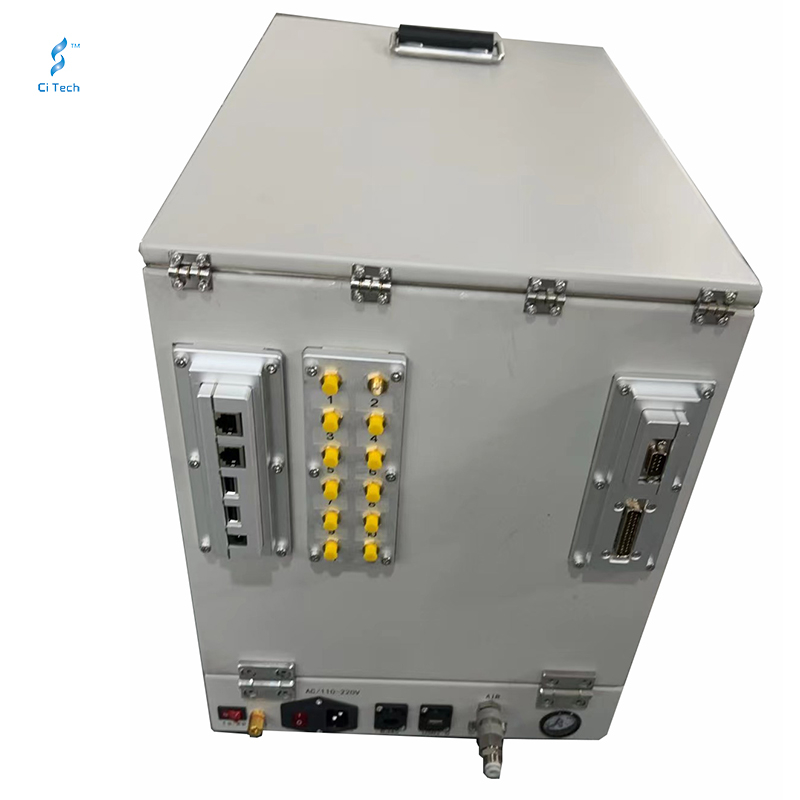

I/O Connectors	SMA12,RS2321, DB251,USB2,RJ452,DC1（According to the customer request）
